توضیحات

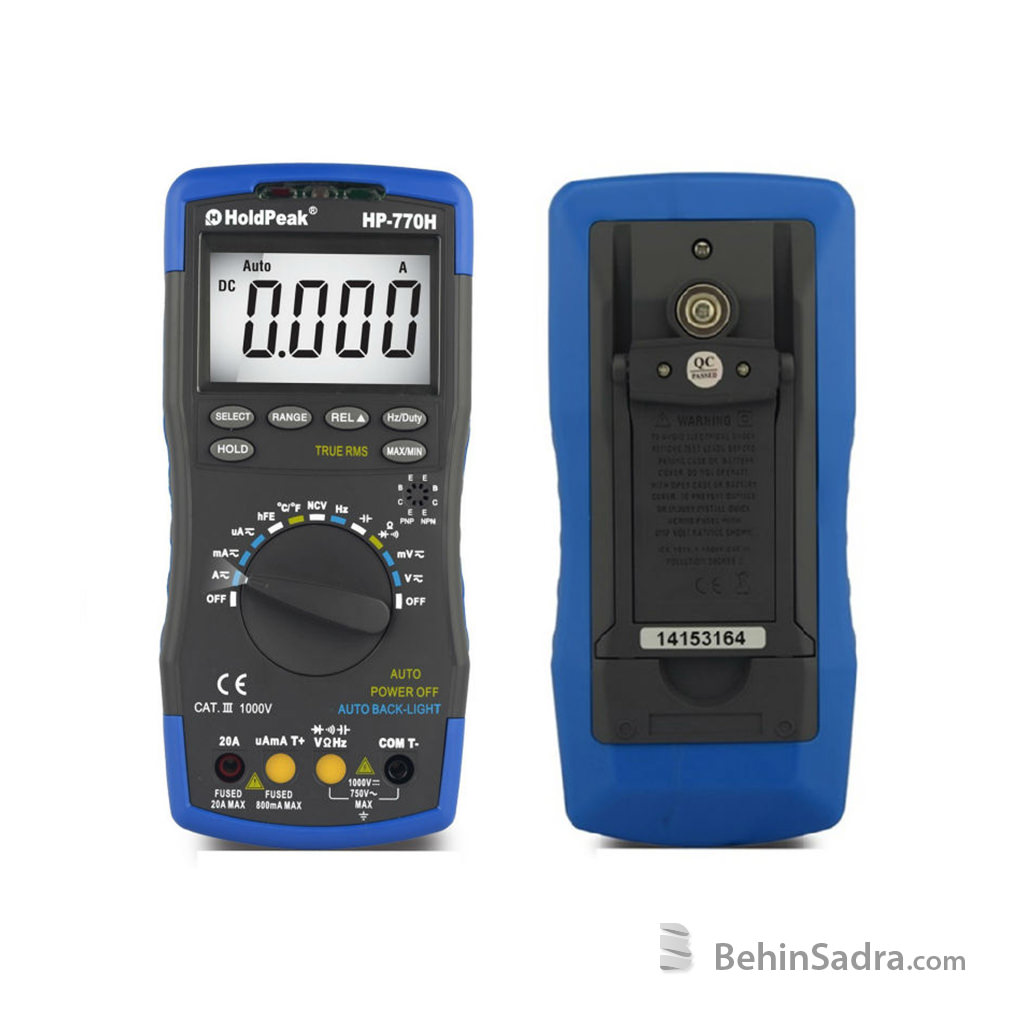

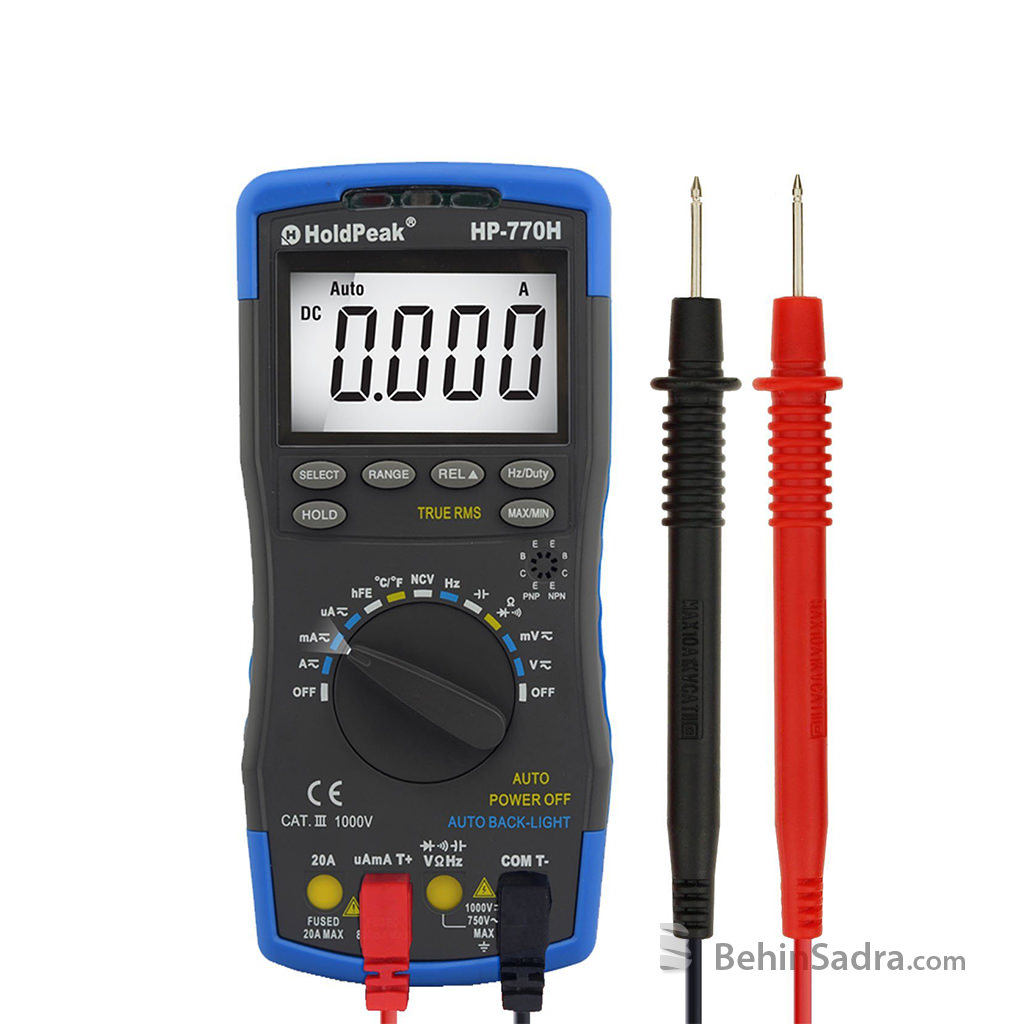

مولتی متر هولدپیک HP-770H

مولتی‌متر هولدپیک

مدل: HP-770H

سایت سازنده محصول

HoldPeak 770 Series Auto（ Big Size )

MODEL: HP-770H

Measure DC & AC voltage, DC & AC current, resistance, capacitor, frequency, duty cycle, temperature, transistor hFE, Non Contact AC Voltage (NCV) detection, positive diode voltage fall and audible continuity.6000 counts automatic range and manual

Basic function
Range
CAT III 1000V , CAT IV 600V
DC Voltage 60mV～۱۰۰۰V
AC Voltage 60mV～۷۵۰V
DC Ccrrent 600μA～۲۰A
AC Ccrrent 600μA～۲۰A
Resistance 600Ω～۶۰MΩ
Capacitance 9.999nF～۹۹.۹۹mF
Temperature -20℃～۱۰۰۰℃(-۴℉～۱۸۳۲℉)
Frequency 9.999Hz～۹.۹۹۹MHz
Duty cycle 0.1%～۹۹.۹%

Express function
Display 6000 Counts
Range Select Auto l
Diode Test √
hFE Test √
Continuity Buzzer √
NCV Test √
Data Hold √
Relative Test √
MAX/MIN Test √
℃/℉Test √
AC True RMS √
Auto Power OFF √
Auto Back Light √
Function Switch Indicator Lamp √
Mechanical Blocking System √
