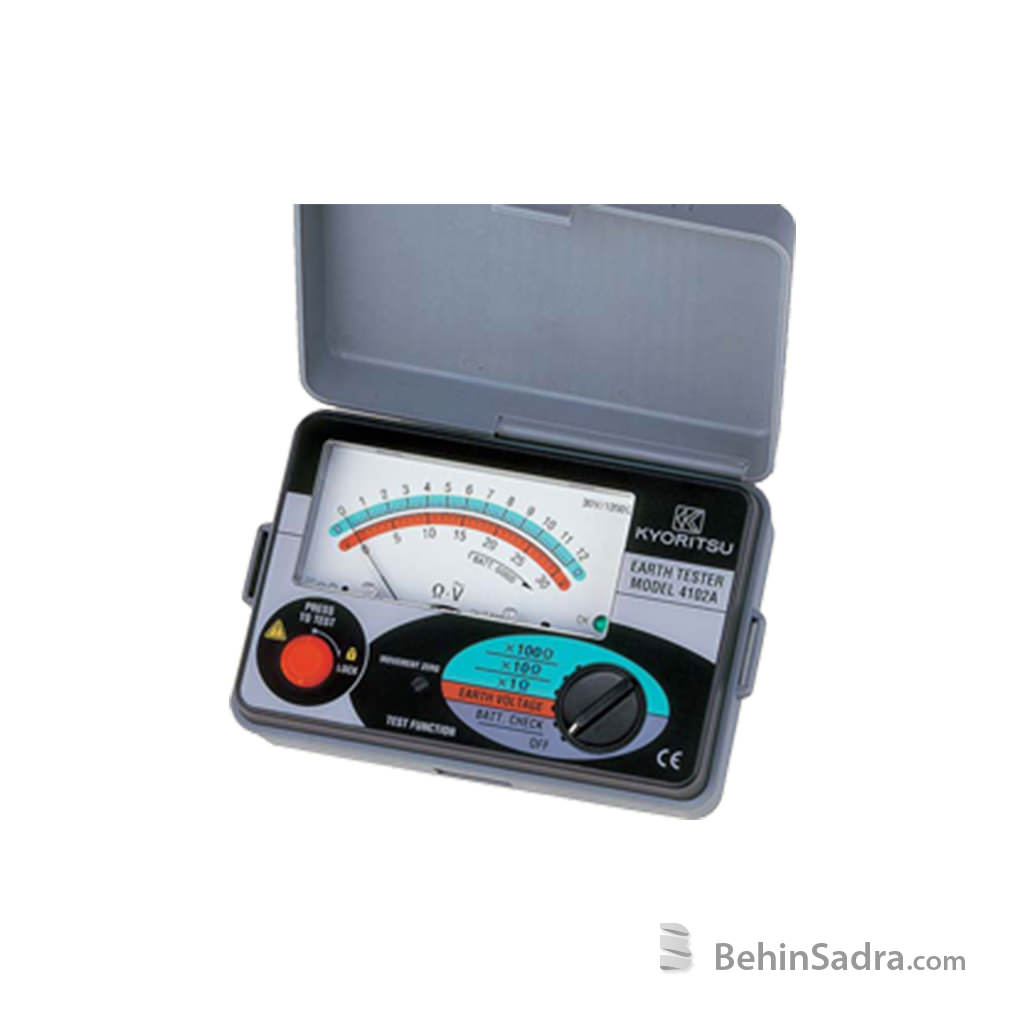

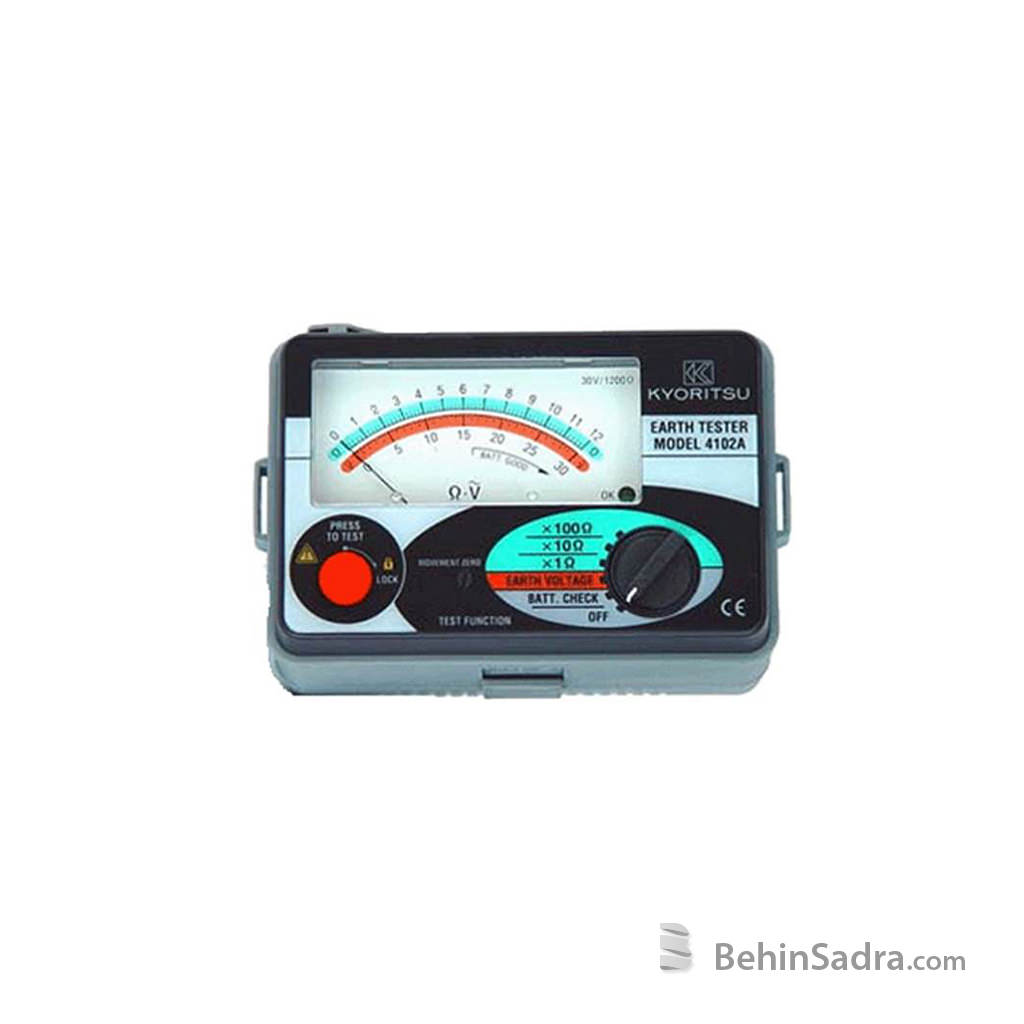

۴۱۰۲A　Soft Case Model
۴۱۰۲A-H　Hard Case Model

• The latest circuit design permits the instrument to operate
with the minimum of influence from earth voltage
and earth resistance of auxiliary earth spikes.
• Dust and drip proof. (designed to IEC 529 IP54)
• Earth resistance value can be read directly from the scale.
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Small and lightweight. Shock resistant new case material.
• ۲mA measuring current permits earth resistance tests
without tripping earth leakage current breakers
in the circuit under test.
• Lead wire connection to C and P terminals and proper
auxiliary earth resistance can be checked by “OK” lamp.
Lead wire connection to C and E terminals is good
when “OK” lamp is illuminated.



Measurement ranges	Earth Resistance: 0 – 12 Ω/۰ – ۱۲۰ Ω/۰ – ۱۲۰۰ Ω Earth Voltage [50,60Hz]: 0 – 30V AC
Accuracy	Earth Resistance: ±۳% of full scale Earth Voltage: ±۳% of full scale
Overload protection	Earth Resistance: 276V AC for 10 seconds across 2 of the 3 terminals Earth Voltage: 276V AC for 1 minute
Applicable standards	IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557 IEC 60529 IP54
Power source	R6 (AA) (1.5V) × ۶
Dimensions	۱۰۵(L) × ۱۵۸(W) × ۷۰(D)mm
Weight	۶۰۰g approx.
Included Accessories	۷۰۹۵A (Earth resistance test leads) × ۱set (red-20m, yellow-10m, green-5m) ۸۰۳۲ (Auxiliary earth spikes) × ۱set ۷۱۲۷A (Simplified measurement probe) × ۱set R6 (AA) × ۶ ۹۱۲۱ (Shoulder strap) Instruction Manual Carrying case : 9084(Carrying case[Soft]:4102A only) : ۹۱۶۴(Carrying case[Hard]:4102A-H only)
Optional Accessories	۷۱۰۰A (Precision measurement cord set)
