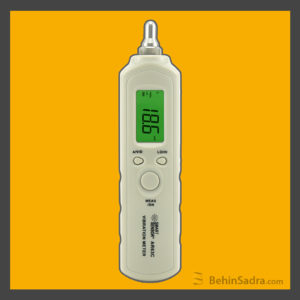

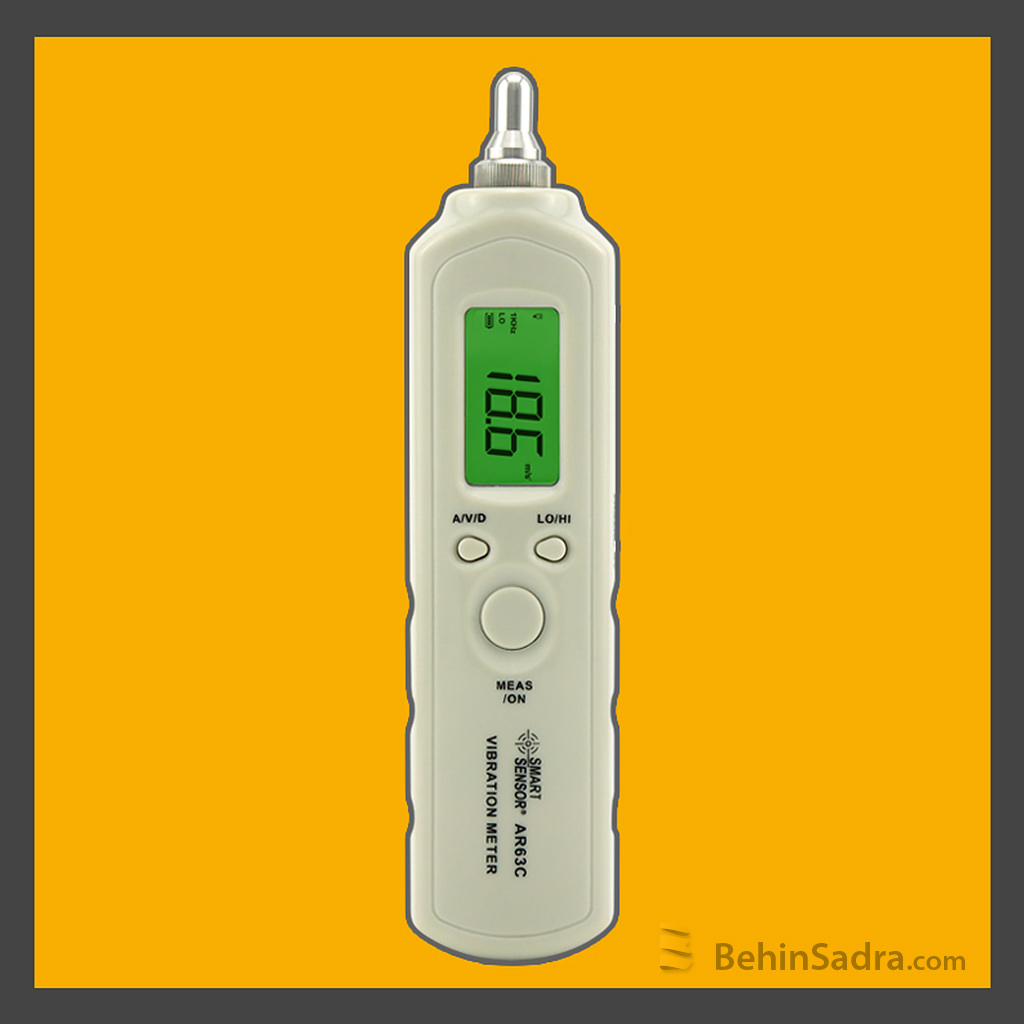

SmartSensor Vibration Meter
MODEL: AR63C
FEATURES
Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
SPECIFICATIONS
|
Measuring Principle |
Piezoelectric Ceramic Accelerometer (shear-type) |
|
Acceleration Range |
۰.۱~۱۹۹.۹m/s2 |
|
Velocity Range |
۰.۱~۱۹۹.۹m/s |
|
Displacement Range |
۰.۰۰۱~۱.۹۹۹mm |
|
Acceleration Frequency Range |
۱۰Hz~1KHz (LO) ۱KHz~15KHz (HI) |
|
Velocity Frequency Range |
۱۰Hz~1KHz |
|
Displacement Frequency Range |
۱۰Hz~1KHz |
|
Accuracy |
±۵%H ±۲ digits |
|
Signal Output |
AC output 2V peak ( Display full scale ) |
|
Max Hold Function |
— |
|
Temperature Measurement |
— |
|
℃/℉Selection |
— |
