سنسور کلمپ کیوریتسو KEW 8130
سنسور کلمپ کیوریتسو
مدل KEW 8130
سنسور کلمپ کیوریتسو KEW 8130

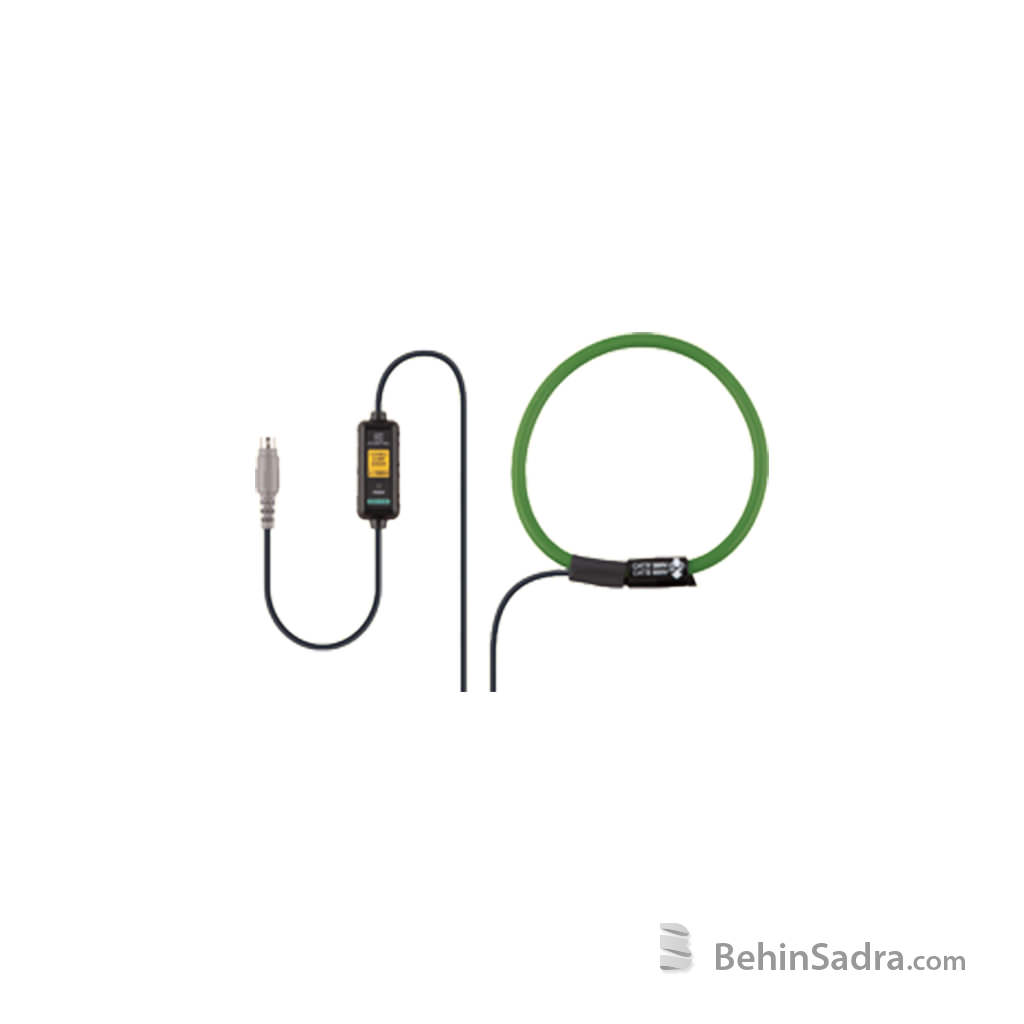

KYORITSU Flexible Clamp Sensor
MODEL: KEW 8130
Ø۱۱۰mm
• Can measure AC current up to 1000A
• Flexible and light weight by the air core coil used at the sensor part
• Designed to meet the international safety standard IEC 61010-1 CAT IV 300V, CAT III 600V
* When you use the sensors with KEW5010/5020, please check the “Applicable model list” to check if your KEW5010/5020 can be used with the sensors.
| Conductor size | max.Ø۱۱۰mm |
|---|---|
| Rated current | AC 1000A |
| Output voltage | AC 500mV / 1000A (AC 0.5mV/A) |
| Accuracy | ±۰.۸%rdg±۰.۲mV (45Hz – 65Hz) ±۱.۵%rdg±۰.۴mV (40Hz – 1kHz) |
| Phase shift | within ±۲.۰° (۴۵Hz – 65Hz) |
| Cable length | Approx. 3m |
| Output connector | MINI DIN 6PIN |
| Output impedance | ۱۰۰Ω or less |
| Applicable standards | IEC 61010-1, IEC 61010-2-030, IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2, IEC 61326 |
| Operating temperature & humidity range | -۱۰ – ۵۰°C, relative humidity 85% or less (no condensation) |
| Weight | Approx. 180g |
| Included Accessories | Instruction manual, Cable marker, ۹۰۹۵ (Carrying case) |
